TS5A3159DCKR 1 Circuit Switching Regulator IC 2:1 1.1Ohm SC-70-6

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

TS5A3159DCKR 1 Circuit Switching Regulator IC 2:1 1.1Ohm SC-70-6

Brand Name : original

Model Number : TS5A3159DCKR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Switch Circuit : SPDT

Multiplexer/Demultiplexer Circuit : 2:01

Number of Circuits : 1

On-State Resistance (Max) : 1.1Ohm

Channel-to-Channel Matching (ΔRon) : 100mOhm

Voltage - Supply, Single (V+) : 1.65V ~ 5.5V

Switch Time (Ton, Toff) (Max) : 35ns, 20ns

-3db Bandwidth : 100MHz

Contact Now

TS5A3159DCKR 1 Circuit IC Switching Regulator 2:1 1.1Ohm SC-70-6

Specifications of TS5A3159DCKR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Interface
Analog Switches, Multiplexers, Demultiplexers
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Switch Circuit SPDT
Multiplexer/Demultiplexer Circuit 2:01
Number of Circuits 1
On-State Resistance (Max) 1.1Ohm
Channel-to-Channel Matching (ΔRon) 100mOhm
Voltage - Supply, Single (V+) 1.65V ~ 5.5V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 35ns, 20ns
-3db Bandwidth 100MHz
Charge Injection 36pC
Channel Capacitance (CS(off), CD(off)) 23pF
Current - Leakage (IS(off)) (Max) 2nA
Crosstalk -65dB @ 1MHz
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
Base Product Number TS5A3159

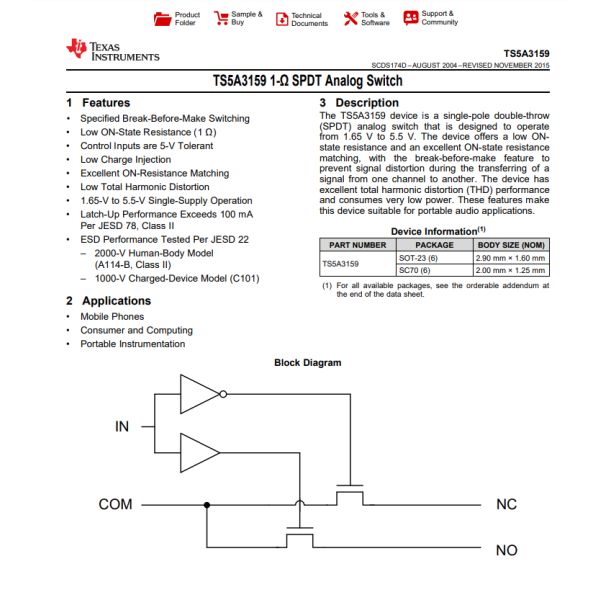

Features of TS5A3159DCKR


* Specified Break-Before-Make SwitchingLow ON-State Resistance (1 Q)
* Control Inputs are 5-V Tolerant
* Low Charge Injection
* Excellent ON-Resistance Matching
* Low Total Harmonic Distortion
* 1.65-V to 5.5-V Single-Supply Operation
* Latch-Up Performance Exceeds 100 mAPer JESD 78, Class Il
* ESD Performance Tested Per JESD
- 222000-V Human-Body Model(A114-B, Class Il)
- 1000-V Charged-Device Model (C101)

Introduction of TS5A3159DCKR


• Mobile Phones
• Consumer and Computing
• Portable Instrumentation


Environmental & Export Classifications of TS5A3159DCKR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

TS5A3159DCKR 1 Circuit Switching Regulator IC 2:1 1.1Ohm SC-70-6
